Section 11 EXDMA Controller (EXDMAC)

Rev. 2.00 Sep. 24, 2008 Page 506 of 1468

REJ09B0412-0200

11.5.10

Bus Cycles in Dual Address Mode

(1)

Normal Transfer Mode (Cycle Steal Mode)

In cycle steal mode, the bus is released after one byte, word, or longword has been transferred.

While the bus is released, one CPU, DMAC, or DTC bus cycle is initiated.

Figure 11.24 shows an example of transfer when

ETEND output is enabled, and word-size, normal

transfer mode (cycle steal mode) is performed from external 16-bit, 2-state access space to

external 16-bit, 2-state access space.

EXDMA read EXDMA write

Address bus

EXDMA read EXDMA write

LHWR, LLWR

ETEND

Bus

release

Last transfer cycle

Bus

release

Bus

release

Bus

release

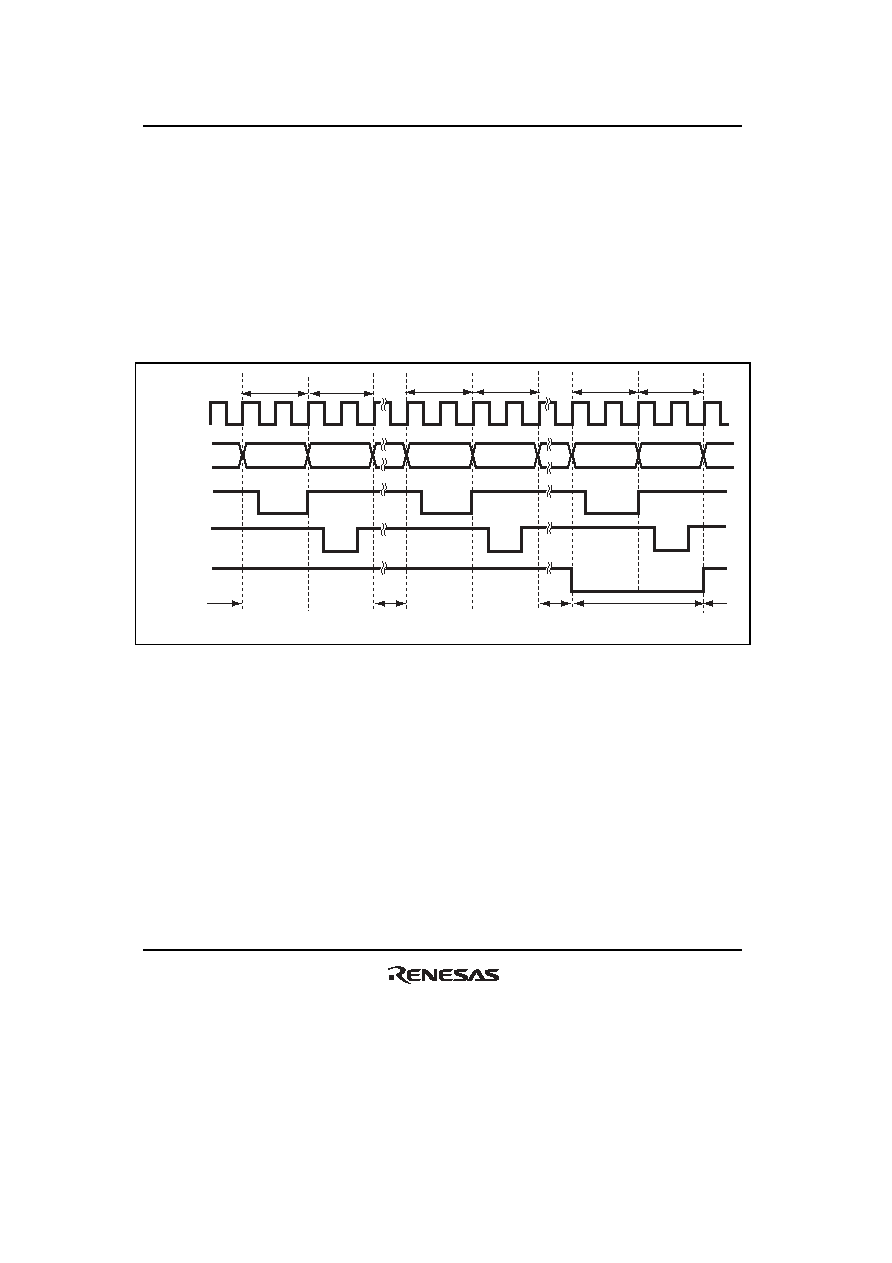

Figure 11.24 Example of Normal Transfer Mode (Cycle Steal Mode) Transfer

Figures 11.25 and 11.26 show examples of transfer when

ETEND output is enabled, and

longword-size, normal transfer mode (cycle steal mode) is performed from external 16-bit, 2-state

access space to external 16-bit, 2-state access space.

In figure 11.25, the transfer source (SAR) address is not at a longword boundary and the transfer

destination (DAR) address is at the longword boundary.

In figure 11.26, the transfer source (SAR) address is at the longword boundary and the transfer

destination (DAR) address is not at the longword boundary.
