Section 12 Data Transfer Controller (DTC)
Rev. 2.00 Sep. 24, 2008 Page 584 of 1468
REJ09B0412-0200
12.5.8
Operation Timing
Figures 11.11 to 11.14 show the DTC operation timings.
Clock
Address
DTC activation
request
DTC request
R
W
Vector read
Transfer
information
read
Data transfer
Transfer
information
write

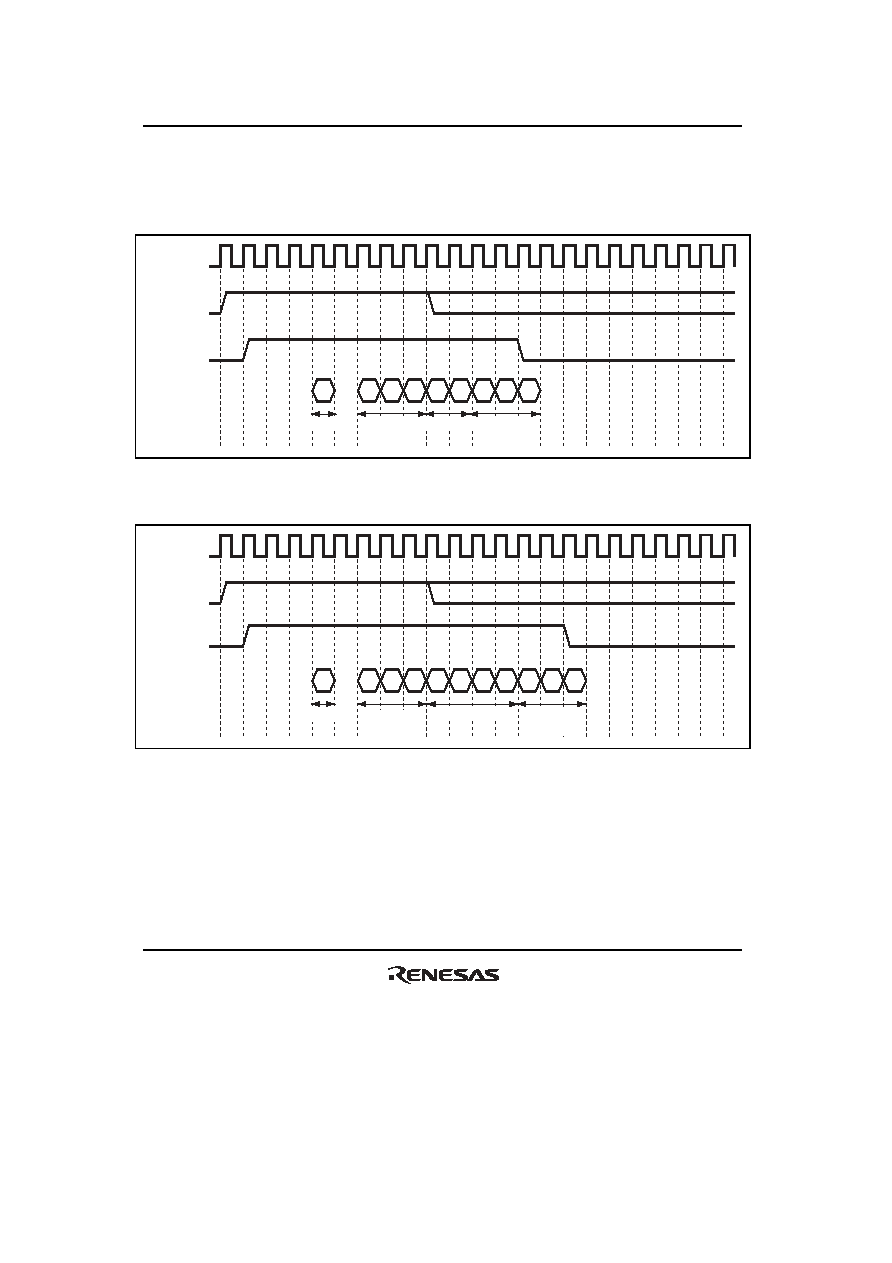

Figure 12.11 DTC Operation Timing
(Example of Short Address Mode in Normal Transfer Mode or Repeat Transfer Mode)
Clock
Address
DTC activation
request
DTC request
RW
R
W
Vector read
Transfer
information
read
Data transfer
Transfer
information
write
Figure 12.12 DTC Operation Timing
(Example of Short Address Mode in Block Transfer Mode with Block Size of 2)
