Section 28 Power-Down Modes
Rev. 2.00 Sep. 24, 2008 Page 1283 of 1468
REJ09B0412-0200
SLPIE = 0
SLPIE = 1
SSBY = 0
Instruction before SLEEP instruction
Instruction after SLEEP instruction
SLEEP instruction executed (SLPIE = 1)
Sleep instruction
exceotion handling
Canceling factor
interrupt
Transition by interrupt exception handling
Vector Number 18
Exception service routine
RTE instruction executed
Yes
No
Transition by interrupt
exception handling
Interrupt handling routine
RTE instruction executed

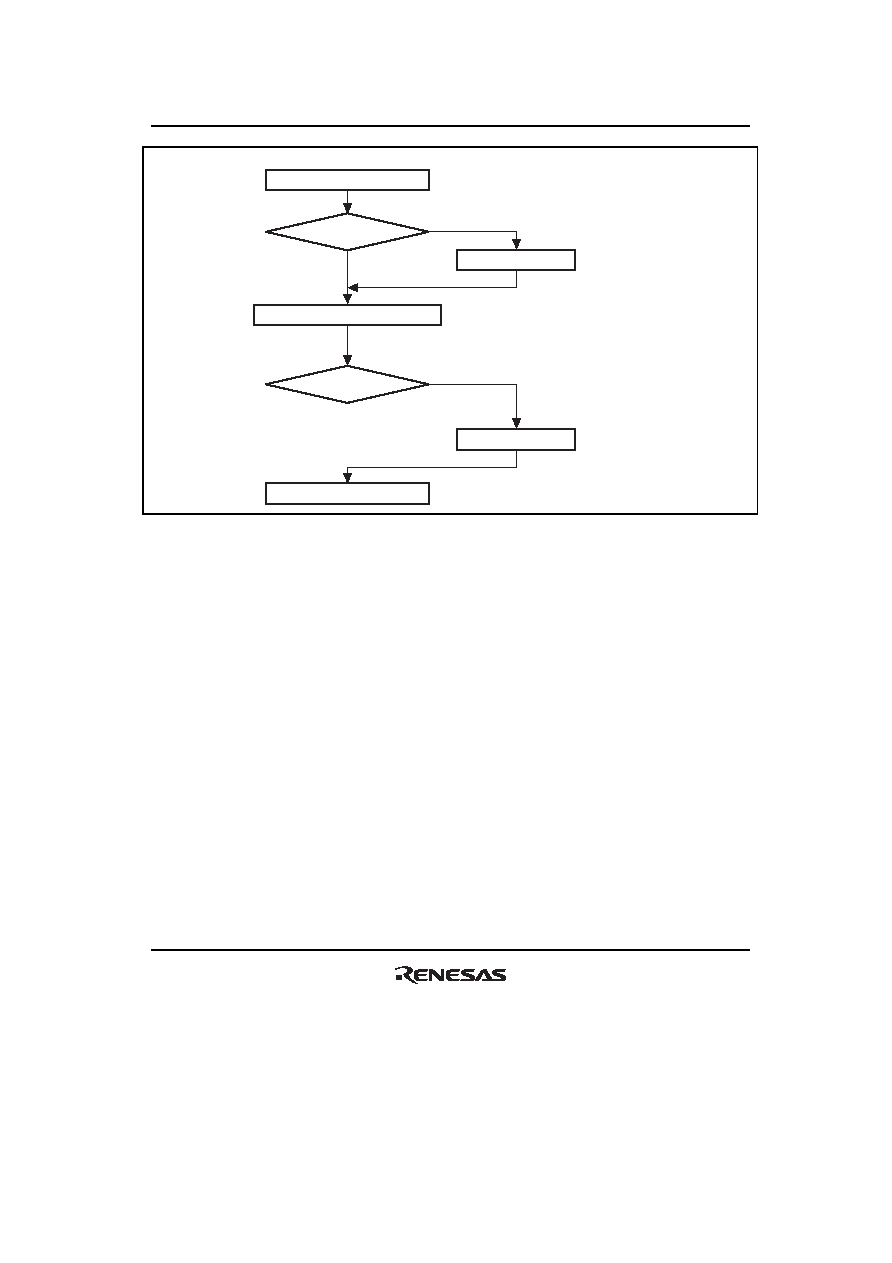

Figure 28.12 When an Interrupt that Initiates Exit from the Power-Down State
is Generated before SLEEP Instruction Execution
(Sleep Instruction Exception Handling Proceeds)
