33394

MOTOROLA ANALOG INTEGRATED CIRCUIT DEVICE DATA

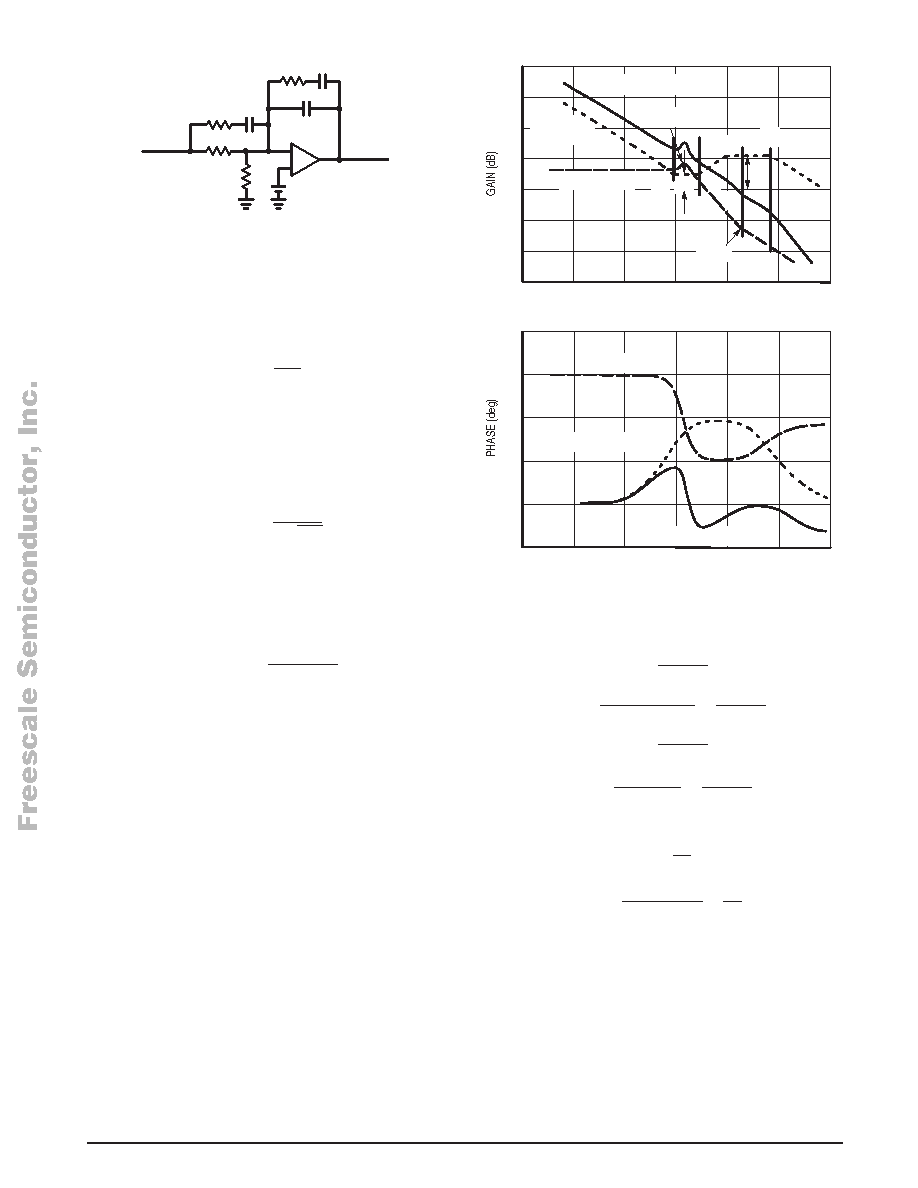

Figure 18. Error Amplifier Two–Pole–Two–Zero

Compensation Network

–

Ref

E/A

VCOMP

VPRE_S

The process of determining the right compensation

components starts with analysis of the open loop (modulator)

transfer function, which has to be determined and plotted into

the Bode plot (see Figure 19). The modulator DC gain can be

determined as follows:

ADC +

Vin

DVe

Where Ve is the maximum change of the Error Amplifier

voltage to change the duty cycle from 0 to 100 percent (Ve =

2.6 V at Vbat =14 V).

As can be seen from Figure 19, the buck converter

modulator transfer function has a double complex pole

caused by the output L–C filter. Its corner frequency can be

calculated as:

fp(LC) +

p LCo

This double pole exhibits a —40dB per decade rolloff and

a —180 degree phase shift.

Another point of interest in the modulator’s transfer

function is the zero caused by the ESR of the output

capacitor Co and the capacitance of the output capacitor

itself:

fz(ESR) +

pRESRCo

The ESR zero causes +20dB per decade gain increase,

and +90 degree phase shift.

Once the open loop transfer function is determined, the

appropriate compensation can be applied in order to obtain

the required closed loop cross over frequency and phase

margin (~60 degree) — refer to Figure 18 and Figure 19.

Figure 19 shows the 33394 Switching Regulator modulator

gain–phase plot, E/A gain–phase plot, closed loop

gain–phase plot, and the E/A compensation circuit. The

frequency fxo is the required cross–over frequency of the

buck regulator.

In order to achieve the best performance (the highest

bandwidth) and stability of the voltage–mode controlled buck

PWM regulator the two–pole–two–zero type of compensation

was selected — see Figure 19 for the compensated Error

Amplifier Bode plot, and Figure 18 for the compensation

network. The two compensating zeros and their positive

phase shift (2 x +90 degree) associated with this type of

compensation can counteract the negative phase shift

caused by the double pole of the modulator’s output filter.

Figure 19. Bode Plot of the Buck Regulator

100 k

10 k

1000

100

11 M

–60

–40

–20

f (Hz)

–360

–270

–180

–90

100 k

10 k

1000

100

11 M

f (Hz)

MODULATOR

CLOSED LOOP (overall)

ERROR AMPLIFIER

MODULATOR

CLOSED LOOP (overall)

ERROR

AMPLIFIER

fp1

fp2

fZ(ESR)

fZ2

fZ1

fp(LC)

Ifxo

The frequency of the compensating poles and zeros can

be calculated from the following expressions:

fz1 +

pR2C2

fz2 +

p(R1 ) R3)C3

[

pR1C3

fp1 +

pR3C3

fp2 +

C1 ) C2

pR2C1C2

[

pR2C1

and the required absolute gain is:

A1 +

A2 +

R2(R1 ) R3)

R1R3

[

Refer to Application Schematic Diagram (Figure 20) and

Table 2 for the 33394 switcher component values.
