33394

20

MOTOROLA ANALOG INTEGRATED CIRCUIT DEVICE DATA

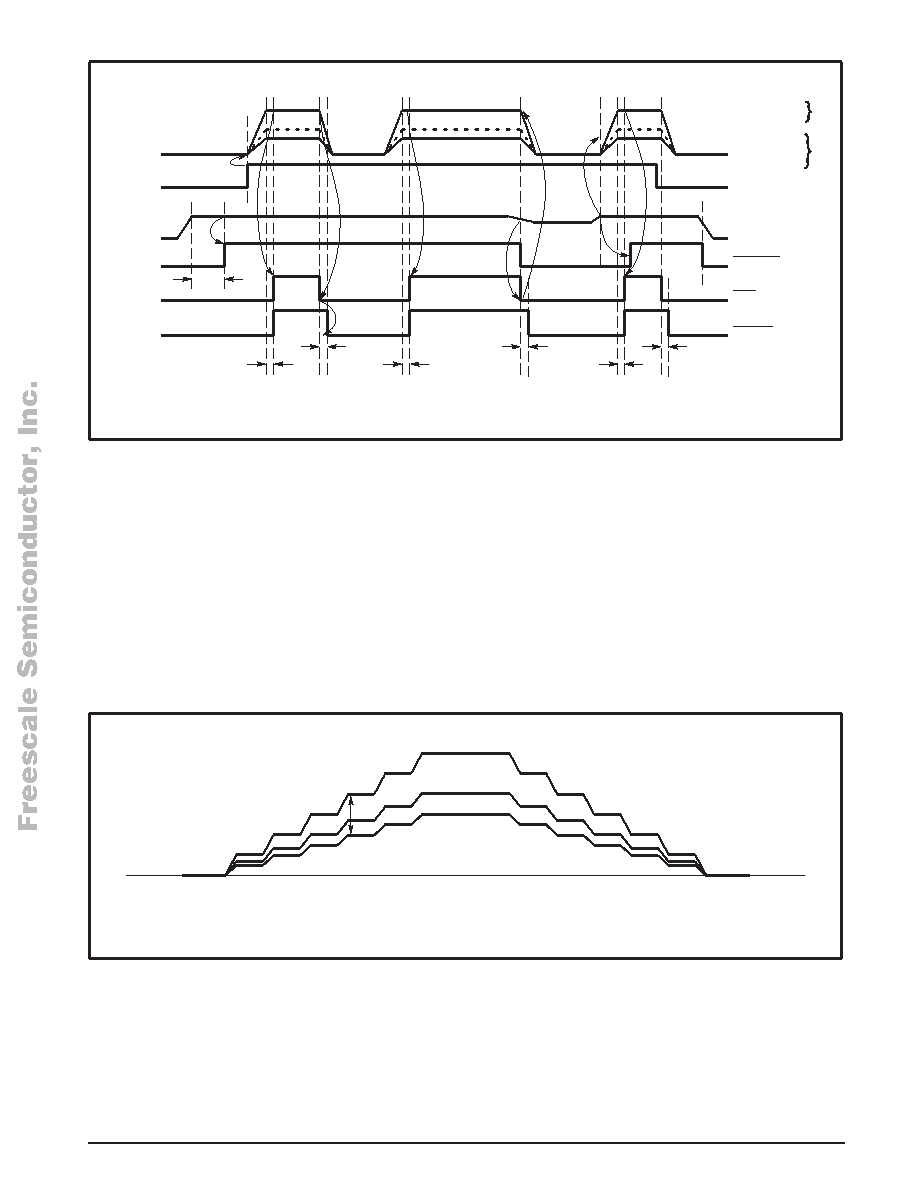

Figure 5. 33394 Timing Diagram

VDDH = 5.0V

VDD3_3 = 3.3V*

VDDL = 2.6V

VKAM = 2.6V

2.6V

2.6V

2.6V

0.7

ms

0.7

ms

0.7

ms

HRT DELAY

HRT DELAY

HRT DELAY

VDDH, VDDA,

VFLASH5

KAPWR,

VDDSRAM1,2,3

VDDRTC

PORESET

IRQ0

HRESET

MPC56X

VDDH

VDD3_3

VDDL

VIGN

VKAM

/PORESET

/PRERESET

/HRESET

10ms

3

2

1

4

5

6

8

10

11

9

7

33394

Output

Supply Input

NVDDL, QVDDL,

VDD, VDDSYN,

VDDF

5.0V

2.6V

* VDD3_3 = 3.3V (not used by MPC56x)

1 Module connected to the battery, VKAM starts to regulate, /PORESET is released after VKAM is in regulation for 10 ms.

2 VIGN is applied, 33394 starts power up sequence.

3 VDDH, VDD3_3, VDDL are stable and in regulation before /PRERESET and /HRESET are released (with a HRT delay

programmable by an external capacitor and resistor, HRT pin).

4 Any of VDDH, VDD3_3, VDDL voltages out of regulation initiate /PRERESET asserted. Power down sequence initiated.

5 /HRESET is asserted 0.7

ms after /PRERESET

6 When fault is removed and VDDH, VDD3_3, VDDL are in regulation, the /PRERESET and /HRESET outputs are released

(with an HRT delay).

7 When VKAM goes out of regulation limits (4% below its nominal value), /PORESET, /PRERESET and /HRESET (/HRESET

with 0.7

ms delay) are asserted – see Note 1.

8 33394 initiates power down sequence.

9 Fault on VKAM removed, the 33394 initiates the start up sequence.

10 When VDDH, VDD3_3, VDDL are in regulation again, the /PRERESET and /HRESET outputs are released (with an HRT

delay).

11 /PORESET is released with a 10 ms delay after the fault on VKAM was removed.

Figure 6. 33394 Power Up/Down Sequence

VDDH = 5.0 V

VDD3_3 = 3.3 V

VDDL = 2.6 V*

POWER UP SEQUENCE

POWER DOWN SEQUENCE

0 V

*NOTE: VDDL = 2.6 V for MPC565

LESS THAN 3.1 V

* VKAM voltage level for MPC55x devices is 3.3 V and for MPC56x devices is 2.6 V.
