Data Sheet
ADA4255
THEORY OF OPERATION
analog.com
Rev. 0 | 34 of 64
WIRE BREAK DETECTION
The ADA4255 contains two programmable current sources that
can be configured to 0.25 μA, 2 μA, 4 μA, or 16 μA via the
WB_CURRENT bits (Register WB_DETECT). Both currents are
conducted from VDDH. These currents, in conjunction with the
on-chip comparators, enable continuity testing on the ADA4255
inputs.
The currents are switched to the amplifier inputs using F1 and F2,
as shown in Figure 95. The voltage to which these currents bias the
amplifier inputs is monitored internally by the ADA4255. When this
voltage is within 4 V of VDDH, the WB_ERR
(Register ANALOG_ERR_DIS) flag trips.
When F1 or F2 are closed, the amplifier gain settings in the
GAIN_MUX register are temporarily overridden to the default values
to avoid saturating the amplifier output in the event of an open-cir-
cuit input. Reads of the GAIN_MUX register during this time do not
reflect this. When F1 and F2 are open, the GAIN_MUX register
values automatically return to their previous values. This override
can be disabled via the WB_G_RST_DIS bit
(Register WB_DETECT).

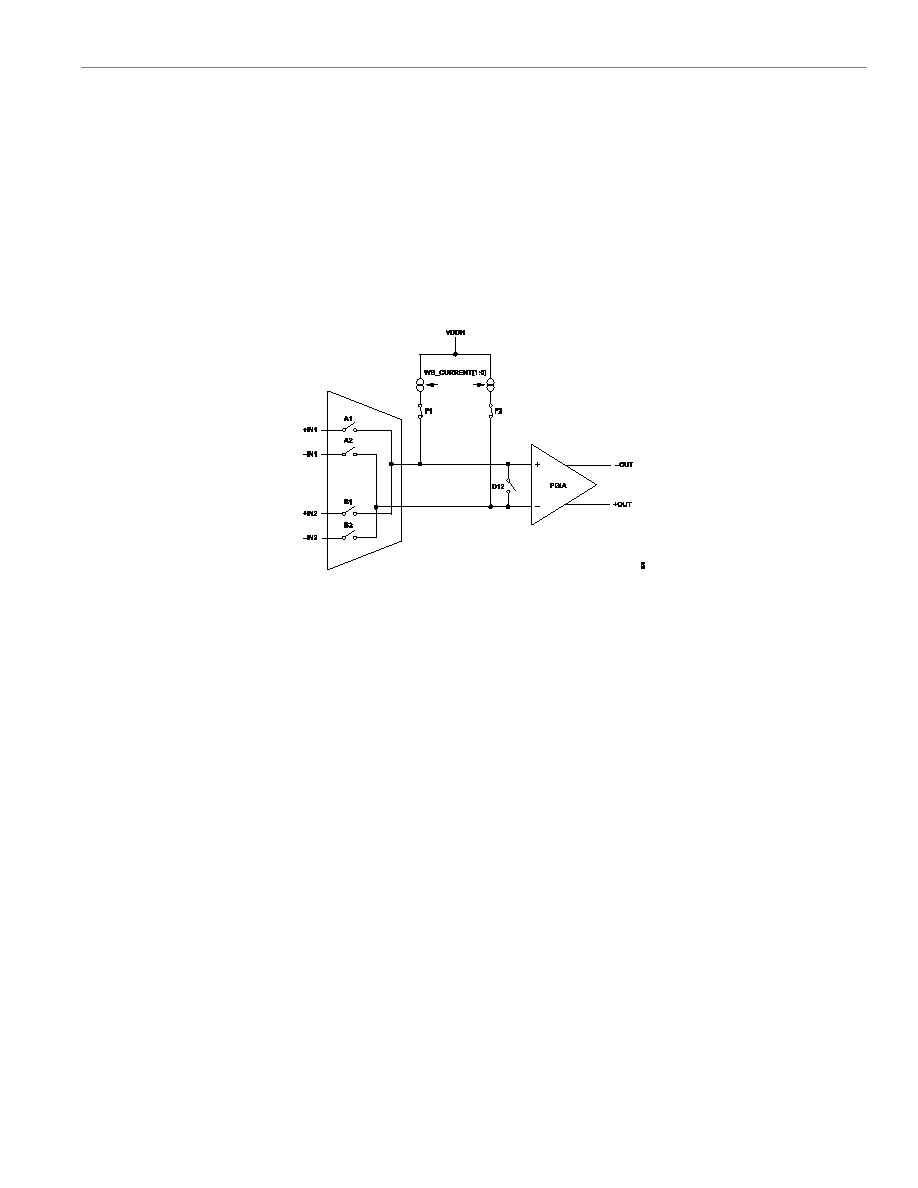

Figure 95. Wire Break Current Connectivity
