Data Sheet
ADA4255
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. 0 | 12 of 64

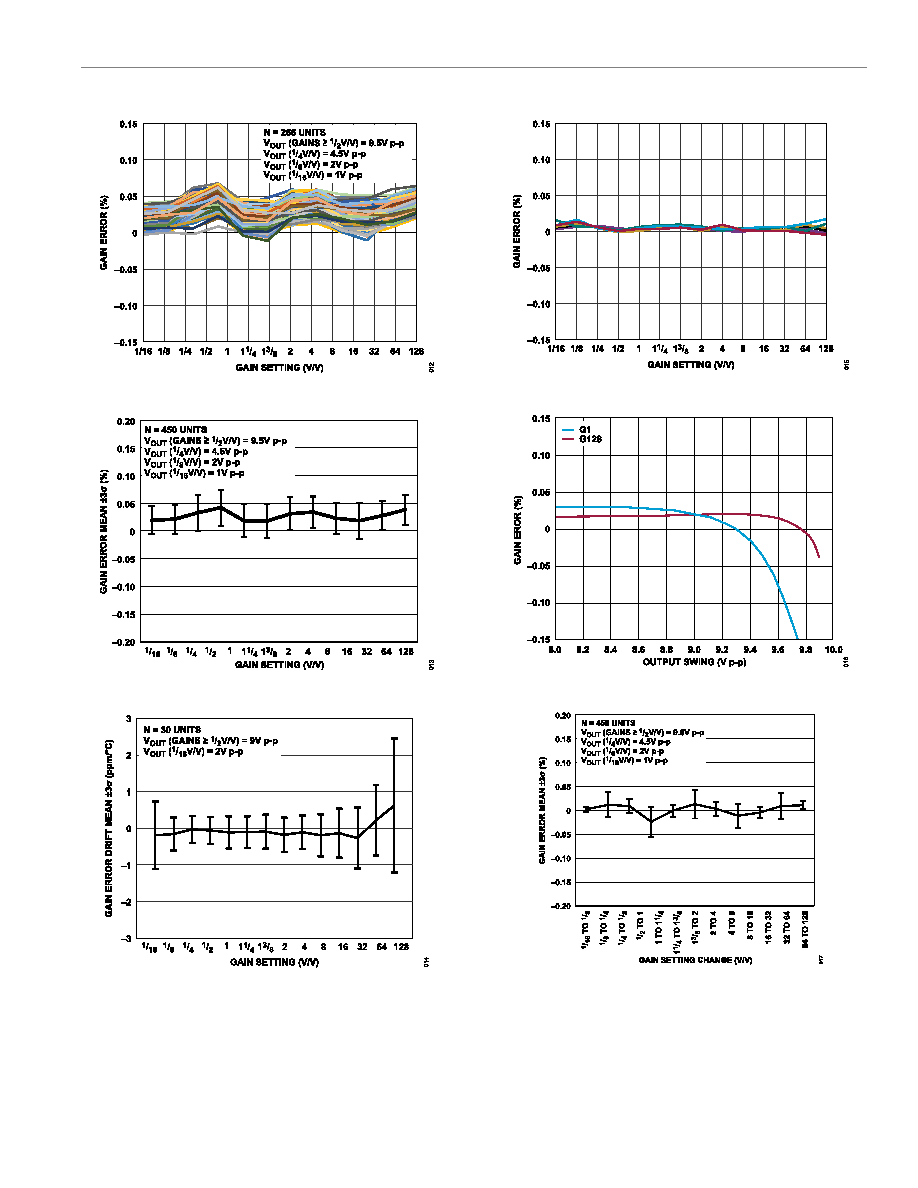

Figure 12. Gain Error vs. Gain Setting
Figure 13. Gain Error Mean ±3 σ vs. Gain Setting
Figure 14. Gain Error Drift Mean ±3 σ vs. Gain Setting
Figure 15. Gain Error vs. Gain Setting Using Calibration Coefficients
Figure 16. Gain Error vs. Output Swing
Figure 17. Gain Error Deviation Between Sequential Gain Settings
