Data Sheet
ADA4255
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. 0 | 19 of 64

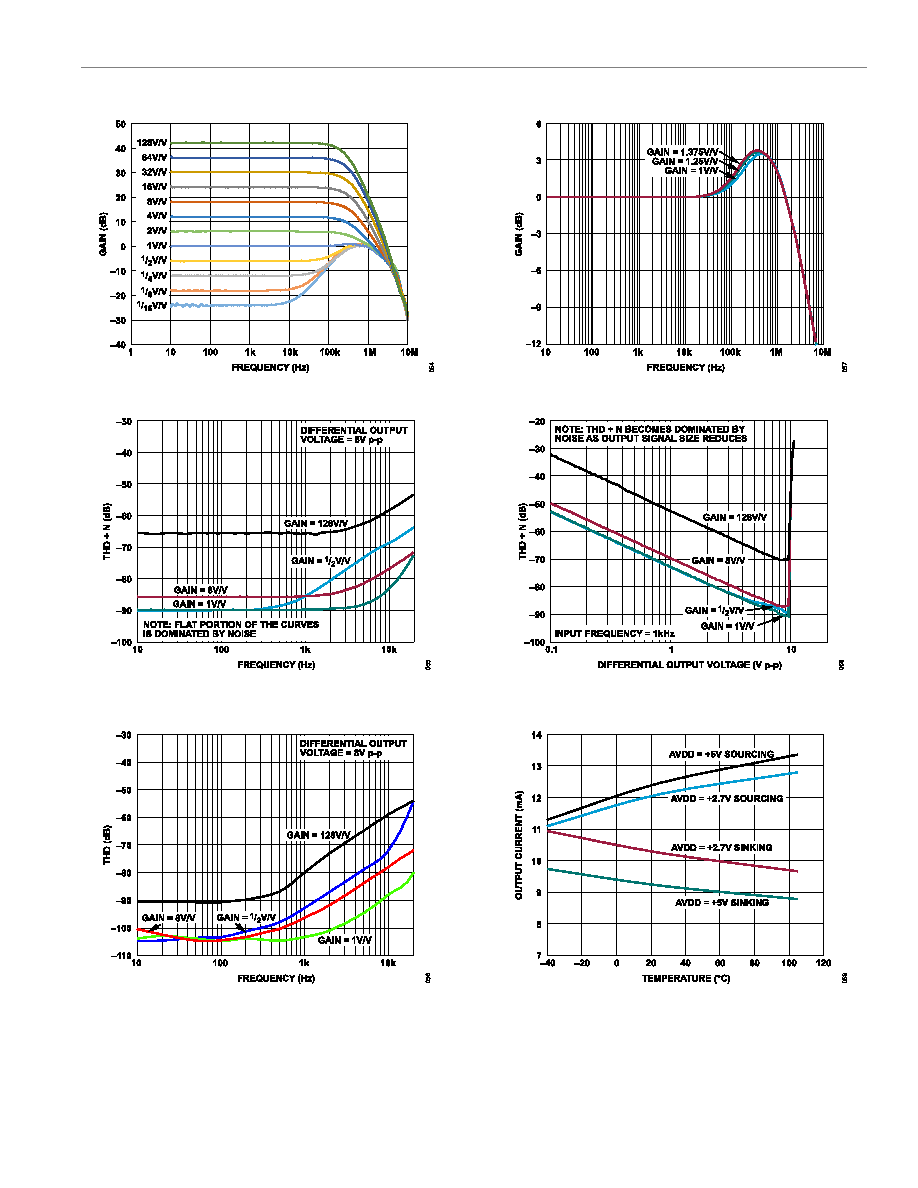

Figure 54. Small Signal Frequency Response
Figure 55. Total Harmonic Distortion Plus Noise (THD + N) vs. Frequency
with 100 kHz Filter, Differential Load Resistor (RL, DIFF) = 5 kΩ
Figure 56. THD vs. Frequency, RL, DIFF = 5 kΩ
Figure 57. VOCM Small Signal Frequency Response
Figure 58. THD + N vs. Differential Output Voltage with 100 kHz Filter, RL, DIFF
= 5 kΩ
Figure 59. Sinking and Sourcing Short-Circuit Output Current vs.
Temperature
