Data Sheet
ADA4255
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. 0 | 23 of 64

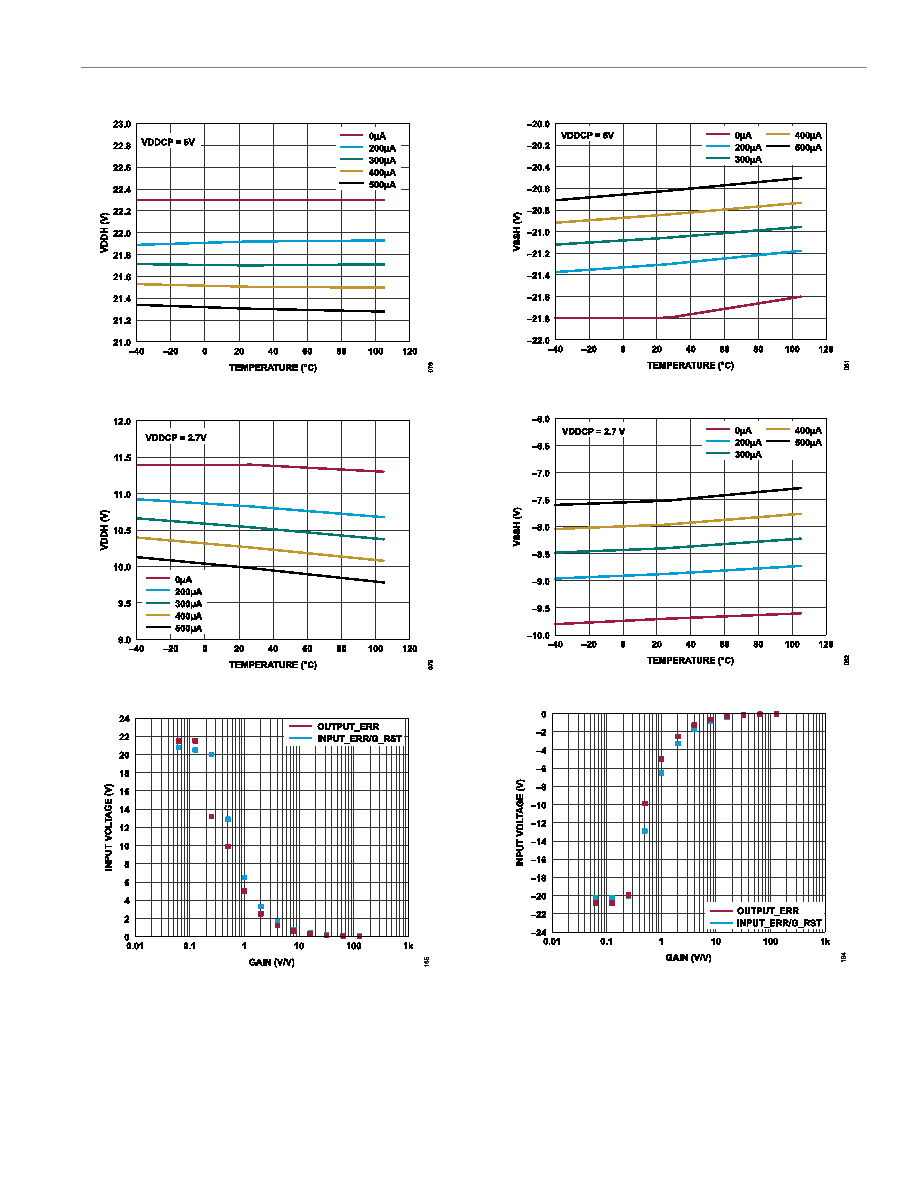

Figure 77. VDDH vs. Temperature for Various VDDH Loads, VDDCP = 5 V
Figure 78. VDDH vs. Temperature for Various VDDH Loads, VDDCP = 2.7 V
Figure 79. Positive Error Trip Thresholds with Single-Ended Input
Figure 80. VSSH vs. Temperature for Various VSSH Loads, VDDCP = 5 V
Figure 81. VSSH vs. Temperature for Various VSSH Loads, VDDCP = 2.7 V
Figure 82. Negative Error Trip Thresholds with Single-Ended Input
