Section 14 16-Bit Timer Pulse Unit (TPU)

Rev. 2.00 Sep. 24, 2008 Page 768 of 1468

REJ09B0412-0200

14.10.3

Caution on Cycle Setting

When counter clearing by compare match is set, TCNT is cleared in the final state in which it

matches the TGR value (the point at which the count value matched by TCNT is updated).

Consequently, the actual counter frequency is given by the following formula:

+ 1)

φ:

Counter frequency

Operating frequency

TGR set value

14.10.4

Conflict between TCNT Write and Clear Operations

If the counter clearing signal is generated in the T2 state of a TCNT write cycle, TCNT clearing

takes precedence and the TCNT write is not performed. Figure 14.47 shows the timing in this

case.

Counter clear

signal

H'0000

TCNT

Address

Write

TCNT address

TCNT write cycle

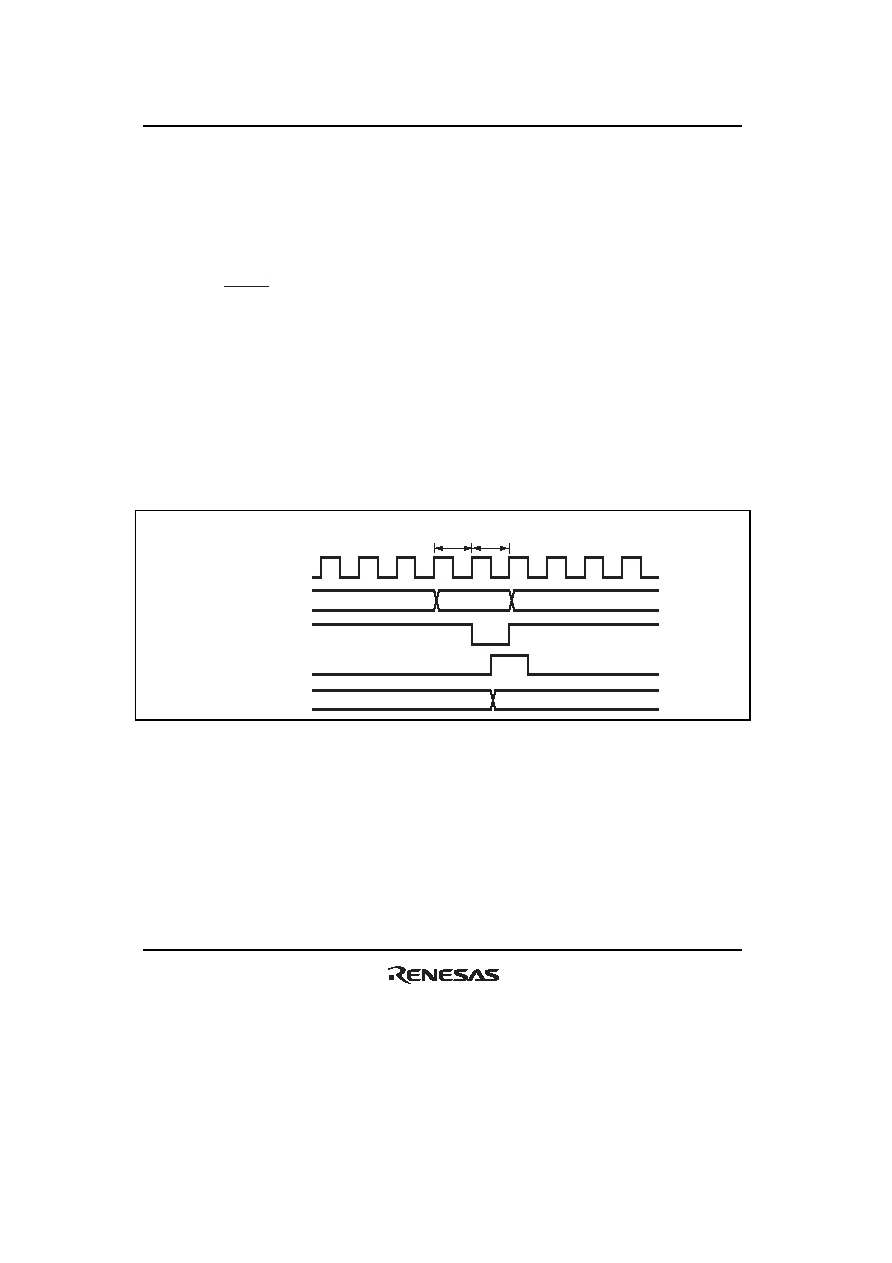

Figure 14.47 Conflict between TCNT Write and Clear Operations
