Section 10 DMA Controller (DMAC)
Rev. 2.00 Sep. 24, 2008 Page 377 of 1468
REJ09B0412-0200

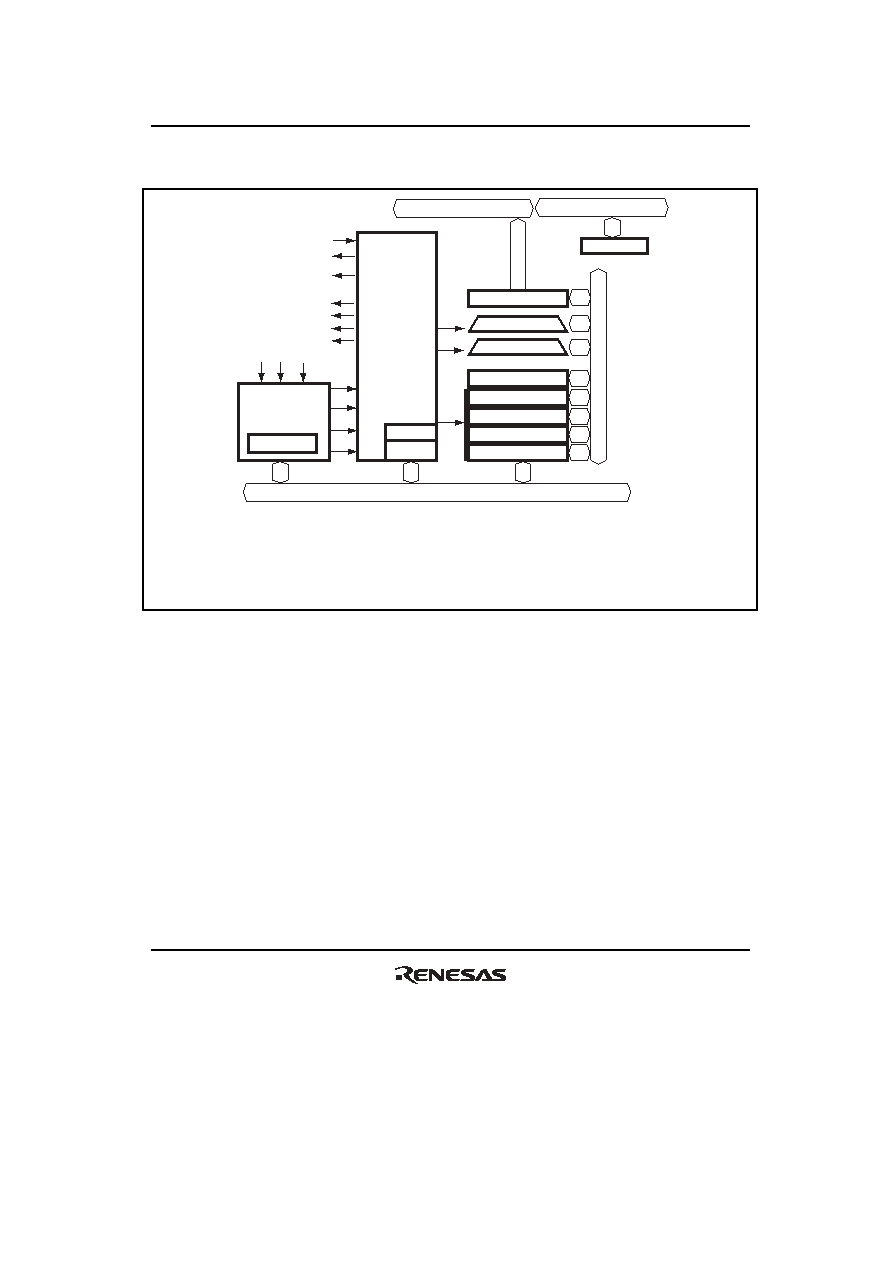

A block diagram of the DMAC is shown in figure 10.1.
External pins
DREQn
DACKn
TENDn
Interrupt signals
requested to the
CPU by each
channel
Internal activation sources
Internal activation
source detector
Controller
DMDR_n
DMRSR_n
DACR_n
DOFR_n
Internal address bus
Internal data bus
DSAR_n
DDAR_n
DTCR_n
DBSR_n
Module data bus
Address buffer
Data buffer
Operation unit
Operation unit
...
[Legend]
DSAR_n:
DMA source address register
DREQn: DMA transfer request
DDAR_n:
DMA destination address register
DACKn: DMA transfer acknowledge
DOFR_n:
DMA offset register
TENDn: DMA transfer end
DTCR_n:
DMA transfer count register
n = 0 to 3
DBSR_n:
DMA block size register
DMDR_n:
DMA mode control register
DACR_n:
DMA address control register
DMRSR_n:
DMA module request select register
Figure 10.1 Block Diagram of DMAC
