H8SX/1663R データシート(PDF) 552 Page - Renesas Technology Corp |
|
|
|||||||||||||||||||||||||||||
H8SX/1663R データシート(HTML) 552 Page - Renesas Technology Corp |
|
|

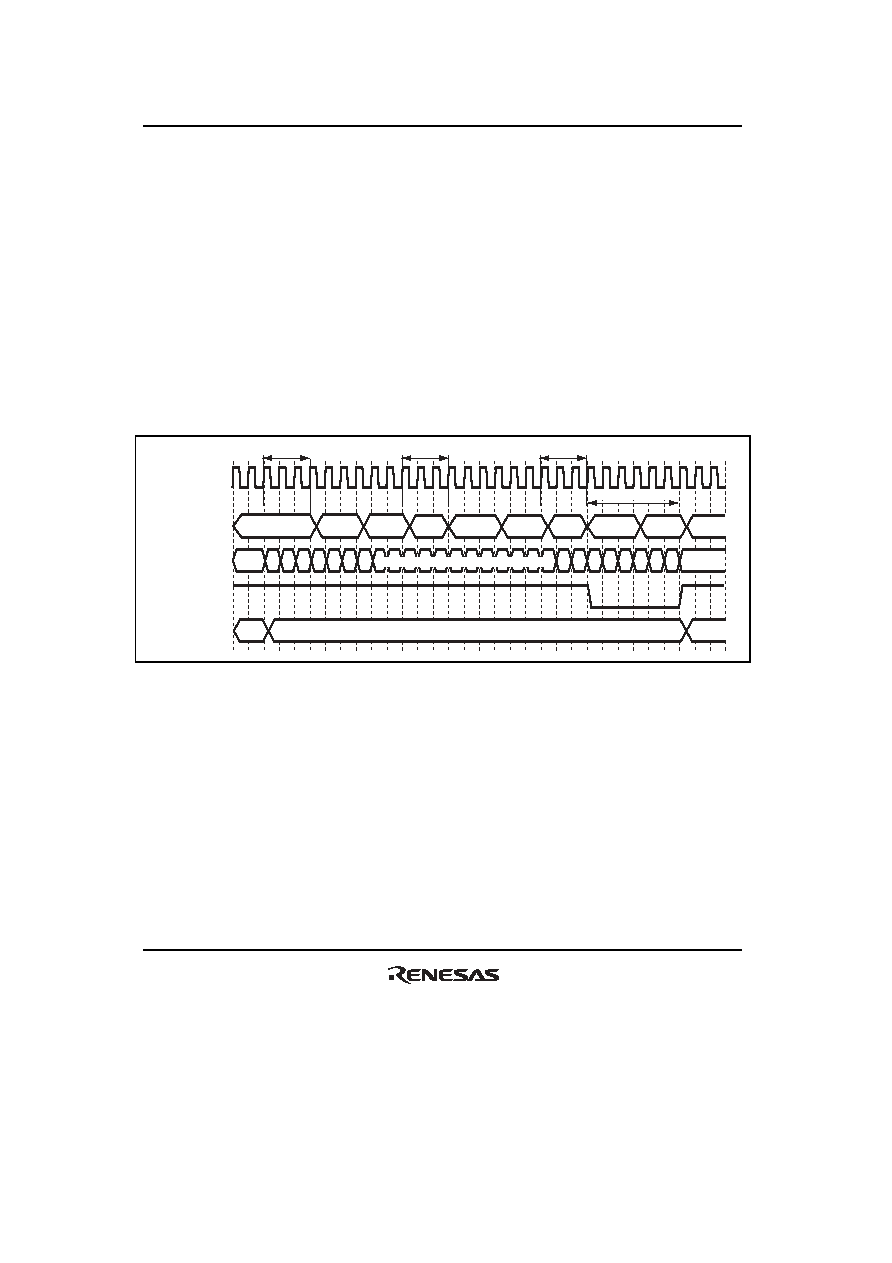

552 / 1504 page  Section 11 EXDMA Controller (EXDMAC) Rev. 2.00 Sep. 24, 2008 Page 520 of 1468 REJ09B0412-0200 11.5.12 Operation Timing in Each Mode This section describes examples of operation timing in each mode. The CPU external bus cycle is shown as an example of conflict with another bus master. (1) Auto-Request/Normal Transfer Mode/Cycle Steal Mode With auto-request (in cycle steal mode), when the DTE bit is set to 1 in EDMDR, an EXDMA transfer cycle is started a minimum of three cycles later. If there is a transfer request for another channel of higher priority, the transfer request by the original channel is held pending, and transfer is performed on the higher-priority channel from the next transfer. Transfer on the original channel is resumed on completion of the higher-priority channel transfer. Figures 11.39 and 11.40 show operation timing examples for various conditions. 3 cycles Bus release EXDMA write EXDMA read EXDMA write EXDMA read 0 1 0 B φ Bus cycle CPU operation ETEND DTE bit 3 cycles EXDMA write EXDMA read Bus release Bus release Bus release DTE 1 write Internal bus space cycles 3 cycles Last transfer cycle Figure 11.39 Auto-Request/Normal Transfer Mode/Cycle Steal Mode (No Conflict/Dual Address Mode) |
|
